| Brand Name : | MXT |
| Model Number : | PA1000T1500M 5W-28V |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 500Sets 30 Days |
| Delivery Time : | 30 Work Days |

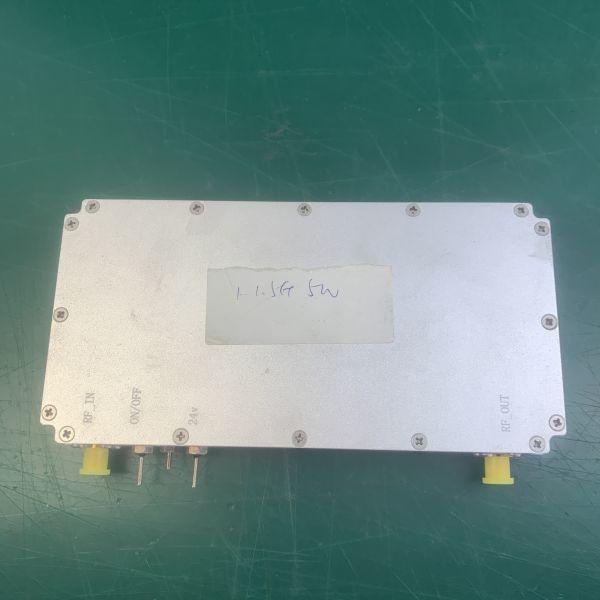

37dBm Solid RF Power Module 2W,5W,10W 1000MHz 1500MHz SMA Conncetor DC 28V RF Power Amplifier
solid-state microwave source, can provide 10W continuous wave power, can realize output power adjustment of 0.1W~10W, high frequency stability, power amplifier built-in high-power circulator and load , suitable for loads of various standing wave ratios; has a complete protection circuit to ensure the reliable operation of the power source.
| Item | Specification |
|---|---|
| Frequency Range | 1000-1500 MHz |
| Output Power | 37 dBm |
| Tx Gain | 21 ± 1 dB |
| Gain Flatness | ≤2.0 (dB) Peak To Peak Over Freq Band |
| Input VSWR | ≤ 1.8:1 |
| DC Current | 2.5 A |
| Size(DxWxH) | 260x70x28 mm |
| In/Out Commector | SMA/N Female |
| Protection | Output Protected Against High VSWR |
| Operation Temp. | -20 ~ +65 (°C) |
| I/O Map | Through-core capacitors Pin 3: ON/OFF (Turn ON enable level: 3.3V；Turn Off when low level or grounded) |
| Supply Voltage | 28V |
| Work Mode | CW Signal COFDM |
RF Power Amplifier – Model Number: PA1000T1500M 5W-28V
This product is mainly suitable for plasma excited MPT engine microwave ignition, solid-state microwave oven, thermal medical treatment, industrial heating, microwave lighting, microwave thawing, etc.
Our custom radio frequency power amplifier (Model Number: PA1000T1500M 5W-28V) is designed for 1000MHz to 1500MHz frequency range, 21dB gain, 50Ω input/output impedance, and SMA connector type. It is manufactured in China, with minimum order quantity of 2. The price is negotiable.
We provide technical support and services related to our RF Power Amplifier product. Our experienced team of technical experts is available to help you with any questions or issues you may have. We offer comprehensive support, from initial installation and setup to troubleshooting and maintenance. Our team is available to answer your questions and provide assistance by phone, email, or online chat.
We also provide periodic maintenance and updates for our RF Power Amplifier product. Our experts can help you identify any potential problems or areas of improvement and recommend solutions to keep your system running smoothly. We also offer warranty and repair services to ensure your product is functioning properly.
Our goal is to provide excellent technical support and services for our customers. If you have any questions or need assistance with your RF Power Amplifier product, please don’t hesitate to contact us.
|
|
