| Brand Name : | MXT |
| Model Number : | TDD1300T1500M 2W-24V |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 500Sets 30 Days |
| Delivery Time : | 30 Work Days |

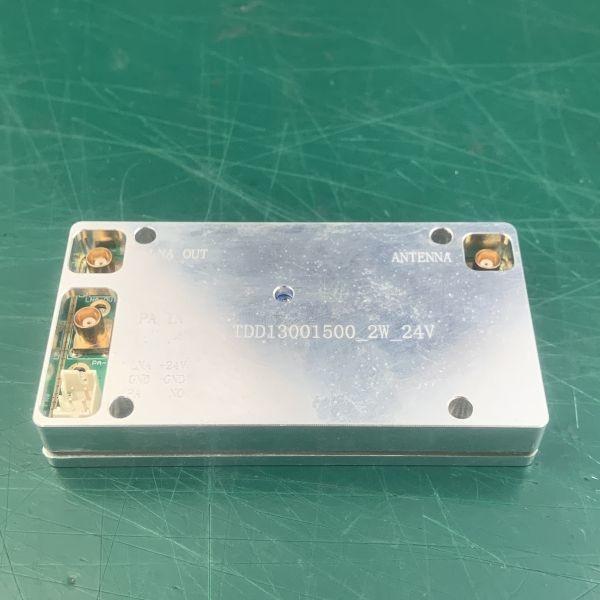

High Efficiency Cofdm Signal With Input From -10dbm To 0dbm Minimization 2w Amplifier 24v Supply
This reliable LTE Power Amplifier features an aluminium case, which provides excellent protection to the device and ensures longevity. It boasts a temperature range of -20℃ to +65℃ and has an output power of more than 33dBm. Additionally, the amplifier has a gain of more than 38dB and an efficiency of more than 15%. Moreover, it has an input/output VSWR of less than 1.8. The amplifier also has a video link, which allows users to monitor the amplifier remotely.
| Item | Specification |
|---|---|
| Frequency Range | Customized (within 1300-1500MHz) |
| Output Power | 33dBm |
| Tx Gain | 38 ± 1 (dB) |
| Rx Gain | 10 ± 1 (dB) |
| Gain Flatness | 2.0 (dB) Peak To Peak Over Freq Band |
| EVM | ≤3.5% |
| Noise Figure | ≤3.0(dB) |
| In/Out VSWR | Less Than 1.8:1 |
| DC Current | 4 (A) @12V |
| Size(DxWxH) | 75*40*11 (mm) |
| In/Out Commector | MCX |
| Time Delay | ≤2(us) |
| Operation Temp. | -20 ~ +65 (°C) |
| I/O Map | Socket 1x6Pin 2.0mm Pin 1:LNA_EN Pin 2:24V Pin 3,4,GND Pin 5:PA_EN Pin 6:NC |
| Supply Voltage | 24V |
| Work Mode | TDD OFDM Signal |
MXT LTE Power Amplifier is designed with a frequency range of 1300MHz-1500MHz, noise figure of less than 3dB, input/ output VSWR of less than 1.8, and gain of more than 38dB. Its size is 75*40*11mm, and it is known for its high linearity, ACPR 40dBc, and efficiency up to 15%. It is an ideal choice for applications such as P to P networking and other wireless communication systems.
MXT's LTE Power Amplifier offers a customised service with a video link to ensure customers get the best product for their needs. This amplifier is made from an aluminium case, making it lightweight and durable, perfect for any TD LTE application. It offers an efficiency of >15%, a noise figure of <3dB, an input/output VSWR of <1.8, an input power of -10dBm to 0dBm, and a gain of >38dB. Customers are sure to receive the highest quality experience with MXT's LTE Power Amplifier.
We offer technical support and services for our RF Power Amplifier products to ensure that they are functioning properly and providing the best possible performance.
We are available to provide assistance with the installation and setup of your RF Power Amplifier. Our team of experienced engineers can guide you through the process and answer any questions you have.
If you are experiencing any issues with your RF Power Amplifier, our team of experts can help identify the source of the problem and provide you with solutions to resolve it quickly.
|
|
