| Brand Name : | MXT |
| Model Number : | PA1000T1700M 300W-2U |
| Delivery Time : | 30 Work Days |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Specification | Remark | |
| Operating Frequency | 1000-1700MHz | |
| Power | ≥ 54.7 dBm (CW) | |
| Tx Gain | ≥ 55 (dB) | |
| Gain Flatness | ± 4 (dB) | |
| In/Out VSWR | Less Than 2.0:1 | |
| Harmonic | ≤ -12dBc | |
Out of Band Stray | ≤-50dBc Deviation From Main signal 200kHz | |
| Lunch Power Inputau | Min. 0 (dBm) | |
| Power Supply | AC 220V | |
| Size(DxWxH) | 480x350x90 (mm) | |
| In/Out Connector | N-Female | |
| Protection | Protected Against High VSWR Stop working when the temperature exceeds 70 ° C Stop working when the standing wave at the output end is ≥ 5 while alarm issue. | |
| Operation Temp. | -20 ~ +60 (°C) | |

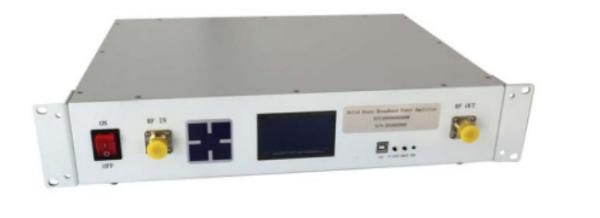

ON/OFF: Power switch
Display screen: Display the operational status and data information of the power amplifier
UP/DOWN Button : Page up/down display screen page up/down function
RUN: Program running light; The flashing LED indicates that the program is running normally, and a long or no light indicates that there is a problem with the program;
PREST: Reset function, when the power amplifier encounters standing wave protection, you can press this buttons to restart the power amplifier; Press and release the amplifier to restart for 2 seconds
AC220V: mains 220V input port
GND: Ground terminal;
USB: serial communication interface, connected to the upper computer software
RF IN: RF input terminal; Interface N-KF head;
RF OUT: RF output terminal; Interface N-KF head;
|
|
